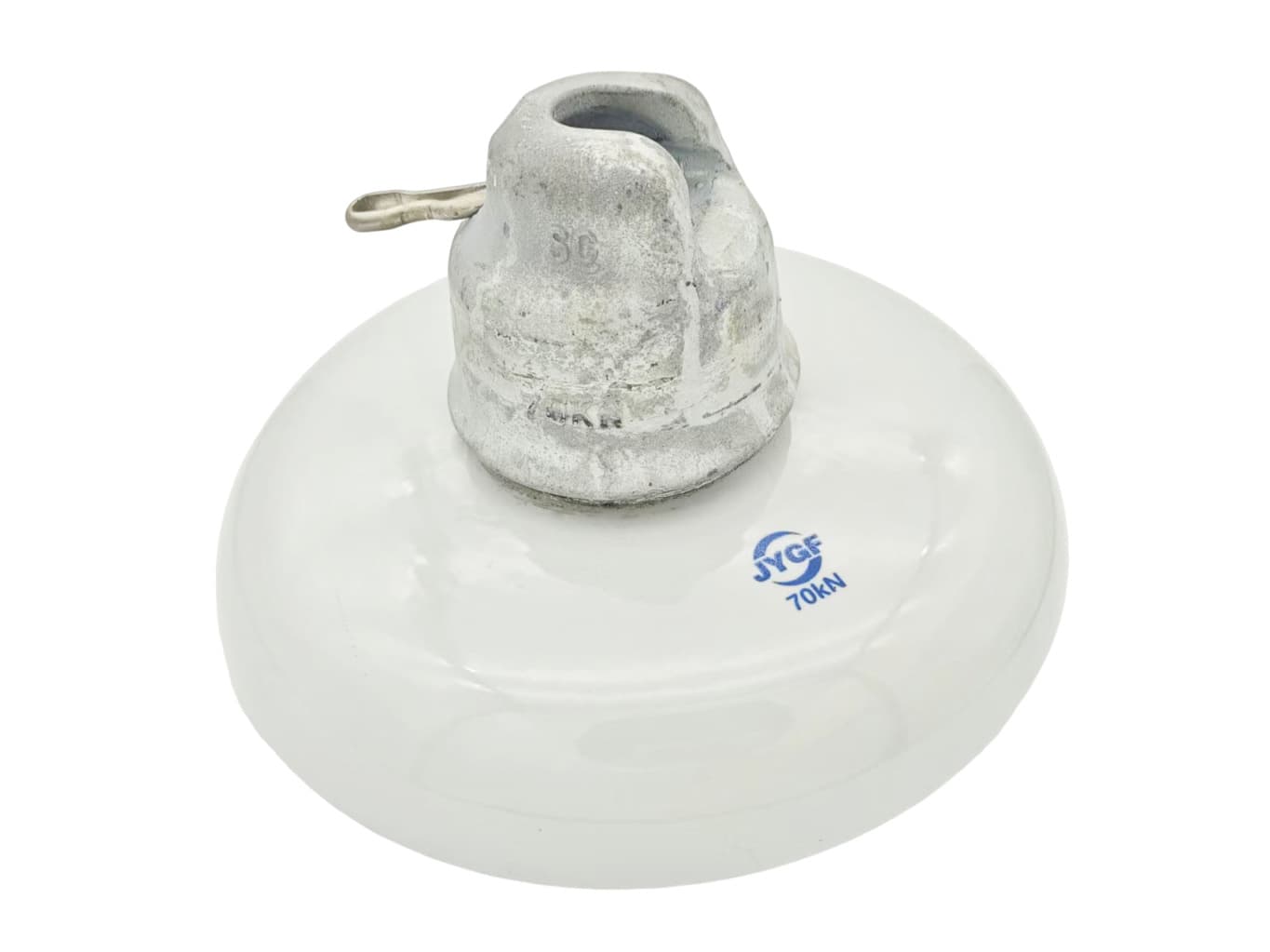

AC disc type suspension porcelain insulator
AC disc type suspension porcelain insulator-(disc cap-nail type) is the main product for overhead power transmission. It has three shed profiles: ordinary, anti-fog, and anti-fouling. It is type tested according to IEC 60305 / IEC 60383 and undergoes 100% routine electromechanical testing. Strings can be configured from 33 kV to 1000 kV ACs. Optional zinc ring for marine and industrial environments.
Disc suspension insulators for AC transmission lines.
- 70-530 kN Electromechanical load level
- Standard, anti-fog (BP), anti-fouling shed profile
- Optional zinc ring for corrosion corridor
- Complies with IEC 60305 / 60383 / 60797
Gallery
AC disc type suspension porcelain insulator — production photos
U70B-146 · 70 kN standard disc

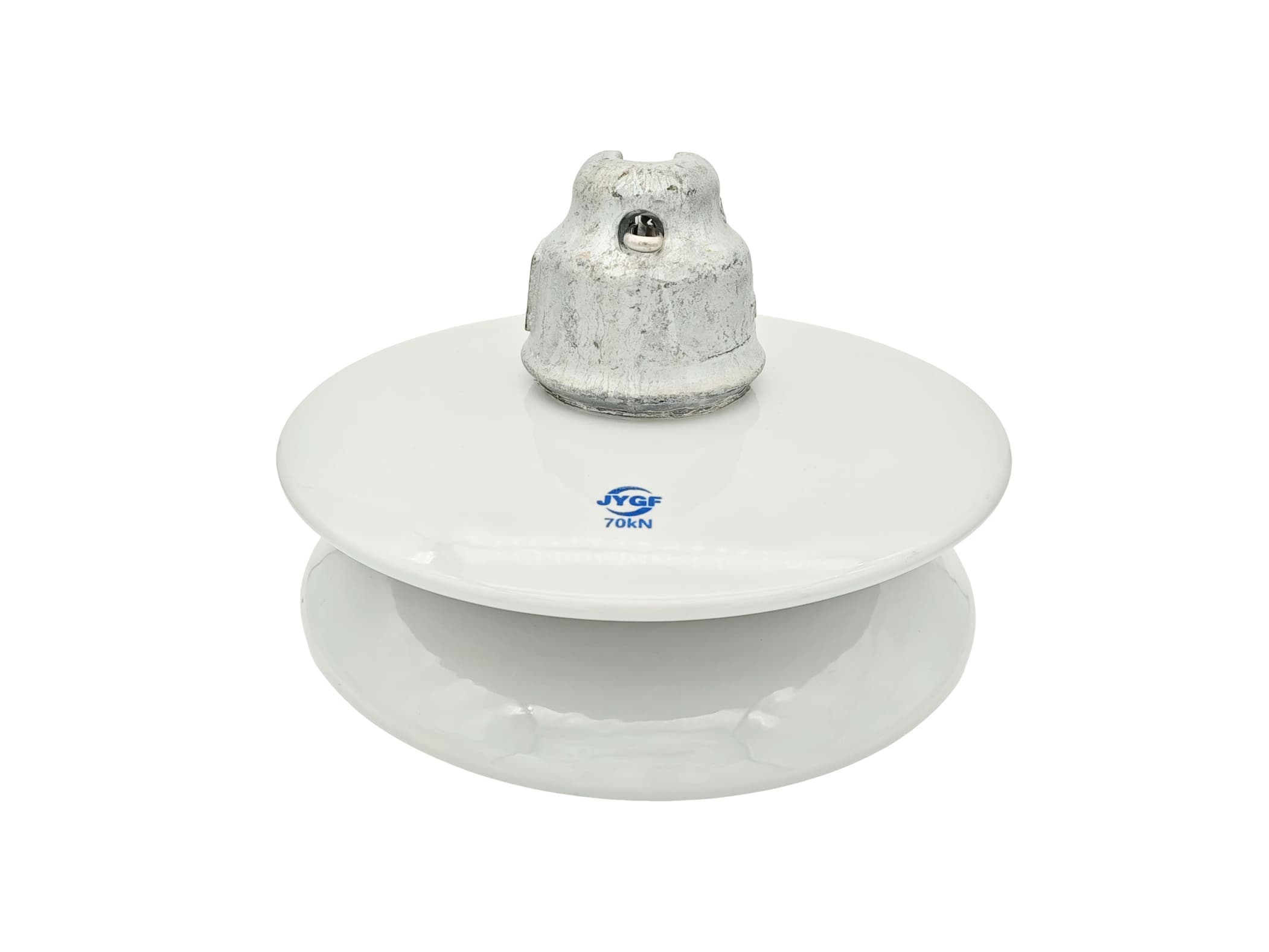

U70BP-146D · 70 kN fog disc
U120B-146
U120Bp 146
U120bp 146d
U120bp 146m
U120BP 155T
U160B 155
U160Bp 155d
U160Bp 155t
U160Bp 170d
U420BP 205d-1
U420BP 205T
U550BP 240T
U70BP 146M
u70bp 155t
U210b 170

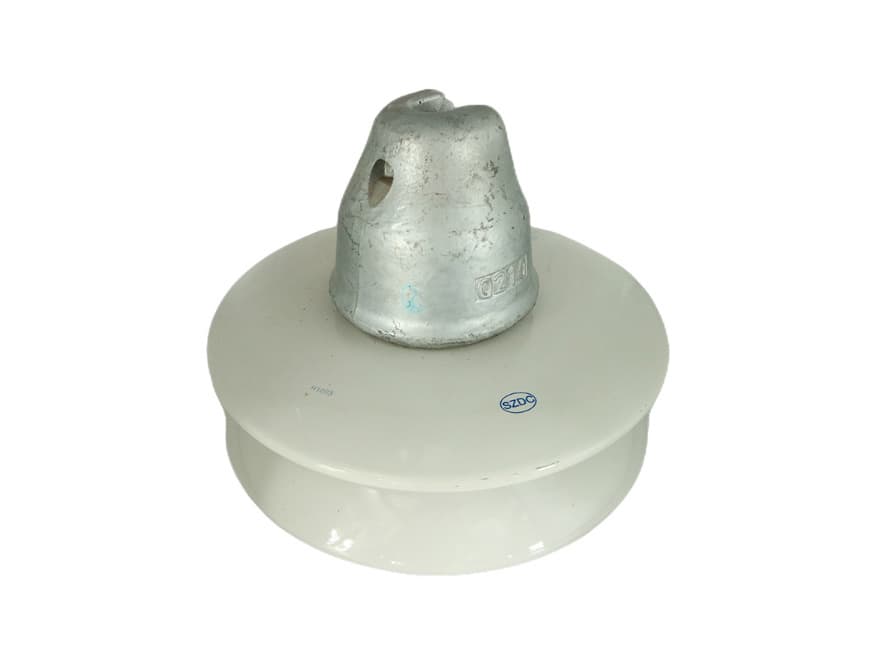

U210BP 170D-1
U210BP 170D-2
U210BP 170M
U210BP 170
U210bp 170t
U300BP 195D
U300BP 195

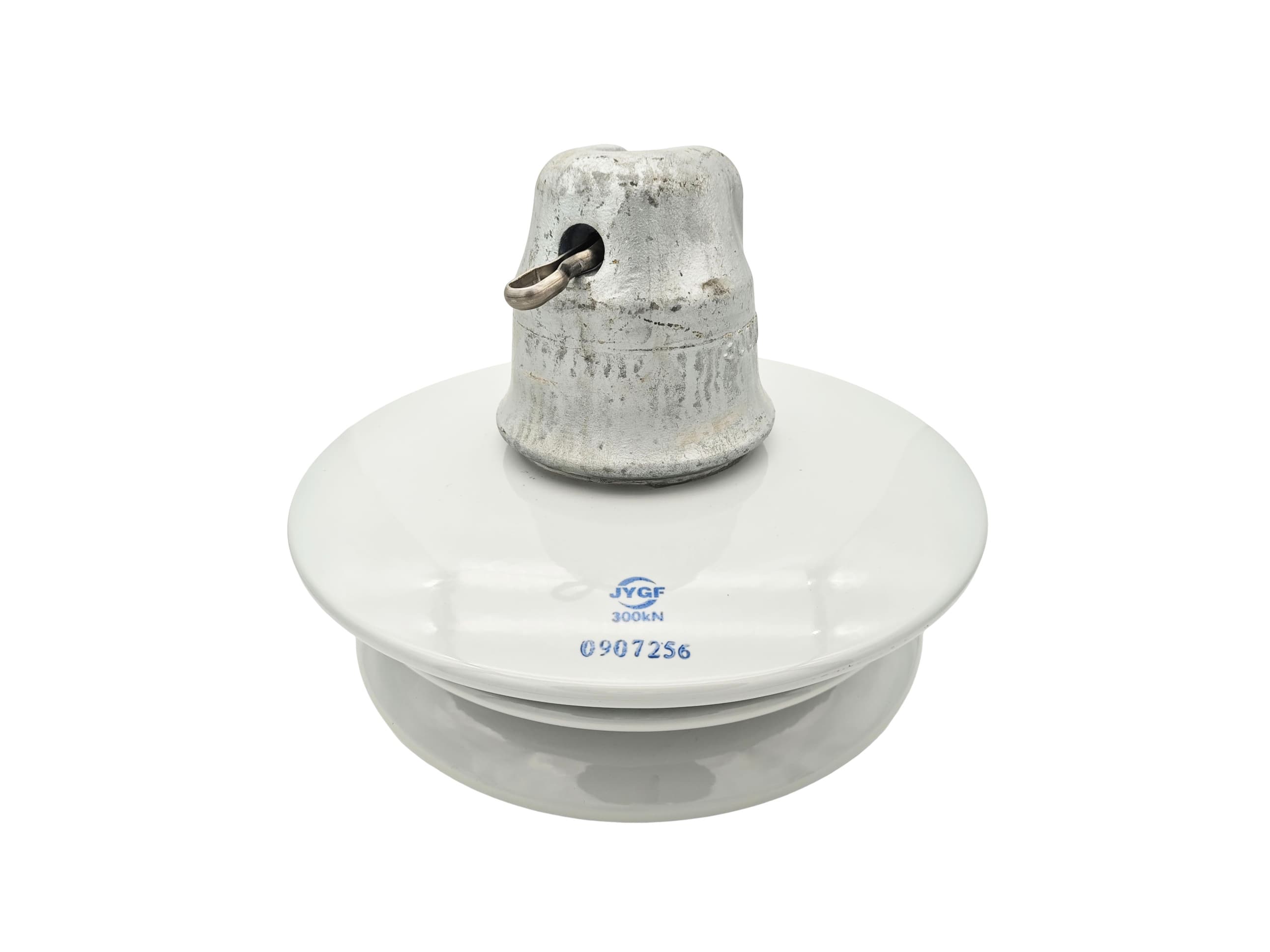

U300BP 195t
U420BP 205
Models
Available models
| Code | Voltage class | Mechanical load | Creepage | Standard |
|---|---|---|---|---|
| U70B-146 | 110 kV | 70 kN | 320 mm | IEC 60305 |
| U70BP-146D | 110 kV | 70 kN | 450 mm | IEC 60305 |
| U120B-146 | 110 kV | 120 kN | 320 mm | IEC 60305 |
| U120bp 146m | 110 kV | 120 kN | 300 mm | IEC 60305 |
| U120BP 155T | 110 kV | 120 kN | 545 mm | IEC 60305 |
| U160B 155 | 120 kV | 160 kN | 400 mm | IEC 60305 |
| U160Bp 155d | 120 kV | 160 kN | 450 mm | IEC 60305 |
| U160Bp 155t | 120 kV | 160 kN | 545 mm | IEC 60305 |
| U160Bp 170d | 120 kV | 160 kN | 525 mm | IEC 60305 |
| U420BP 205d-1 | 140 kV | 420 kN | 550 mm | IEC 60305 |
| U120bp 146d | 110 kV | 120 kN | 450 mm | IEC 60305 |
| U420BP 205T | 140 kV | 420 kN | 635 mm | IEC 60305 |
| U550BP 240T | 140 kV | 550 kN | 650 mm | IEC 60305 |
| U70BP 146M | 110 kV | 70 kN | 300 mm | IEC 60305 |
| u70bp 155t | 110 kV | 70 kN | 550 mm | IEC 60305 |
| U120Bp 146 | 110 kV | 120 kN | 400 mm | IEC 60305 |
| U210b 170 | 130 kV | 210 kN | 400 mm | IEC 60305 |
| U210BP 170D-1 | 130 kV | 210 kN | 450 mm | IEC 60305 |
| U210BP 170D-2 | 130 kV | 210 kN | 525 mm | IEC 60305 |
| U210BP 170M | 130 kV | 210 kN | 380 mm | IEC 60305 |
| U210BP 170 | 130 kV | 210 kN | 550 mm | IEC 60305 |
| U210bp 170t | 130 kV | 210 kN | 545 mm | IEC 60305 |
| U300BP 195D | 130 kV | 300 kN | 480 mm | IEC 60305 |
| U300BP 195 | 130 kV | 300 kN | 505 mm | IEC 60305 |
| U300BP 195t | 130 kV | 300 kN | 550 mm | IEC 60305 |
| U420BP 205 | 140 kV | 420 kN | 550 mm | IEC 60305 |
FAQ
Frequently asked questions
Which standards do AC disc type suspension porcelain insulator comply with?
All AC disc type suspension porcelain insulator from InsulatorX are type-tested to IEC 60305. Type-test reports are issued by independent laboratories including CEPRI and KEMA, and buyer factory audits or witness testing are welcome.
What ratings are available for AC disc type suspension porcelain insulator?
AC disc type suspension porcelain insulator are supplied across 110–140 kV, 70–550 kN. Send us your line voltage, span tension and creepage requirement and our engineers will size the right model with margin.
Which AC disc type suspension porcelain insulator models can I order?
Catalogue models include U70B-146, U70BP-146D, U120B-146, U120bp 146m, U120BP 155T, U160B 155, U160Bp 155d, U160Bp 155t, U160Bp 170d, U420BP 205d-1, U120bp 146d, U420BP 205T, U550BP 240T, U70BP 146M, u70bp 155t, U120Bp 146, U210b 170, U210BP 170D-1, U210BP 170D-2, U210BP 170M, U210BP 170, U210bp 170t, U300BP 195D, U300BP 195, U300BP 195t, U420BP 205. Custom dimensions, shed profiles, creepage extension and connection markings are available on request.
Can AC disc type suspension porcelain insulator be supplied for coastal or heavy-pollution lines?
Yes. We raise creepage distance and offer fog / anti-pollution profiles or hydrophobic silicone housings, sized to your site pollution class — typically class III to IV near the coast.
How do I request a quotation and what is the lead time for AC disc type suspension porcelain insulator?
Email your specifications — voltage, mechanical load, creepage, environment, quantity and INCOTERM — to support@insulatorx.com. We reply within one business day; lead time is 4 to 6 weeks for standard models and 8 to 14 weeks for custom designs, shipped EXW / FOB / CIF / DDP.
